Slant Bed CNC Lathe-TNC-10A
Slant Bed CNC Lathe
TNC-10A
Swing: 400mm BC: 450mm
- The 45° bed is one piece, close grained casting mounted on a cast-iron base, on a cast-iron base.
- Widely spaced hardened and ground slideways combined with the 32mm dia.
- Z axis ball screw give exceptional rigidity.
- The slideways are coated with Teflon to eliminate stick-slip, minimize wear and maintain long term accuracy.
MENU
| Capacity | |
|---|---|
| Swing over bed / Sub plate | Ø 400/120 mm (15.7”/4.7”) |
| Sub plate length | 630 mm (24.8”) |
| Chuck size | Ø 210 mm (8”) |
| Spindle | |
| Spindle nose | A2-6 |
| Spindle bearing diameter | Ø 100 mm (3.9”) |
| Spindle bore | Ø 62 mm (2.4”) |
| Bar capacity | Ø 52 (2”) |
| Spindle taper | 1:20 |
| Spindle speed range | 40-4000 rpm |
| Slides | |
| Longitudinal carriage travel (Z) | 340 mm (13.3”) |
| Cross slide travel (x) | 450 mm (17.7”) |
| X axis rapid traverse | 15 M/min |
| Z axis rapid traverse | 15 M/min |
| Tool holder | |
| ID Tool holder dia. | Ø 40 (1.6”) |
| OD Tool holder dia. | 25 x 25 mm |
| Bed | |
| Width | 560 mm (22”) |
| Slant angle | 45° |
※ The specifications are subject to change without prior notice.

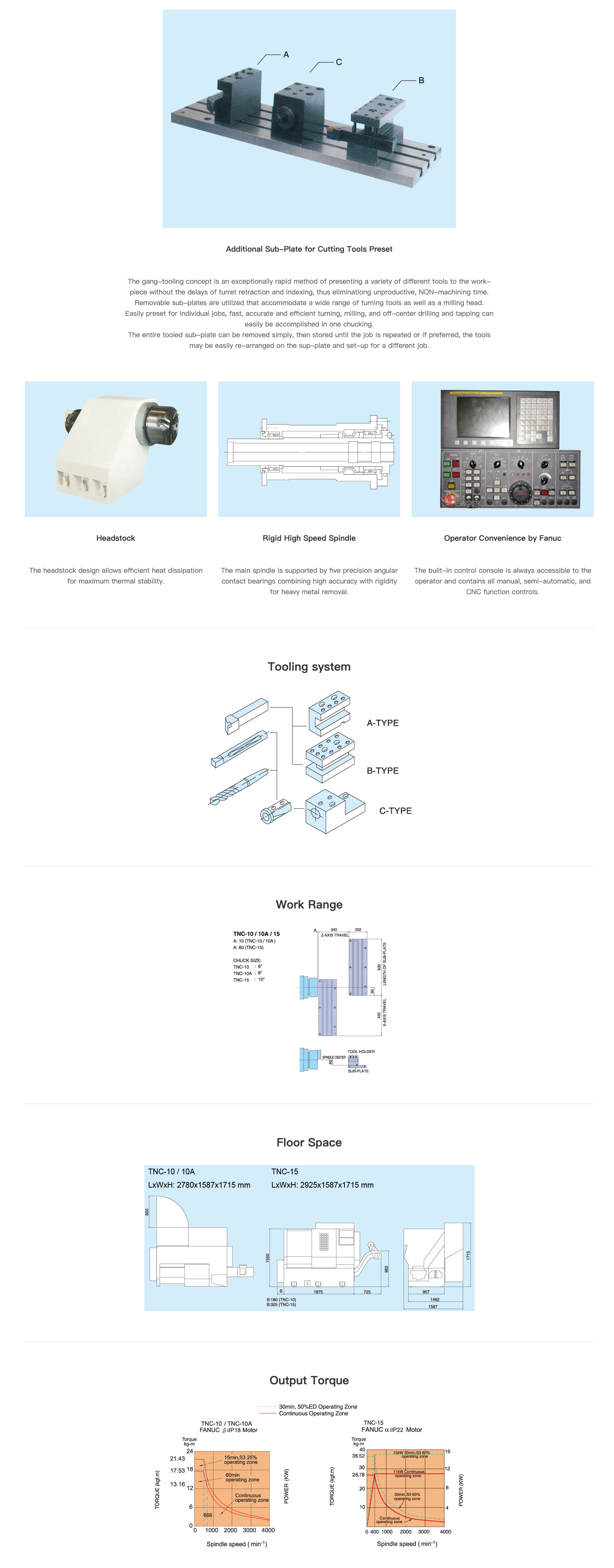

Features
1. 45 degree slant bed with bed width 560mm
2. The spindle is preassembled in high precision bearings and high accuracy grinding sleeve . Such design is for higher precision and easy maintenance.
3. X and Z axis with square box slide way.
4. Longer X axis travel 450mm for machining can be from both direction (+- X) and can arrange more cutting tools.
5. Two steps width range (P series) spindle motor can full power output at low speed with high torque.
6. High rigidity, stable quality, machine gross weight 3500kgs (for TNC-10 & TNC-10A), 3800kgs (for TNC-15).
7. Every rotating part to spindle with dynamic balance test, cutting with high accuracy.
2. The spindle is preassembled in high precision bearings and high accuracy grinding sleeve . Such design is for higher precision and easy maintenance.
3. X and Z axis with square box slide way.
4. Longer X axis travel 450mm for machining can be from both direction (+- X) and can arrange more cutting tools.
5. Two steps width range (P series) spindle motor can full power output at low speed with high torque.
6. High rigidity, stable quality, machine gross weight 3500kgs (for TNC-10 & TNC-10A), 3800kgs (for TNC-15).
7. Every rotating part to spindle with dynamic balance test, cutting with high accuracy.
