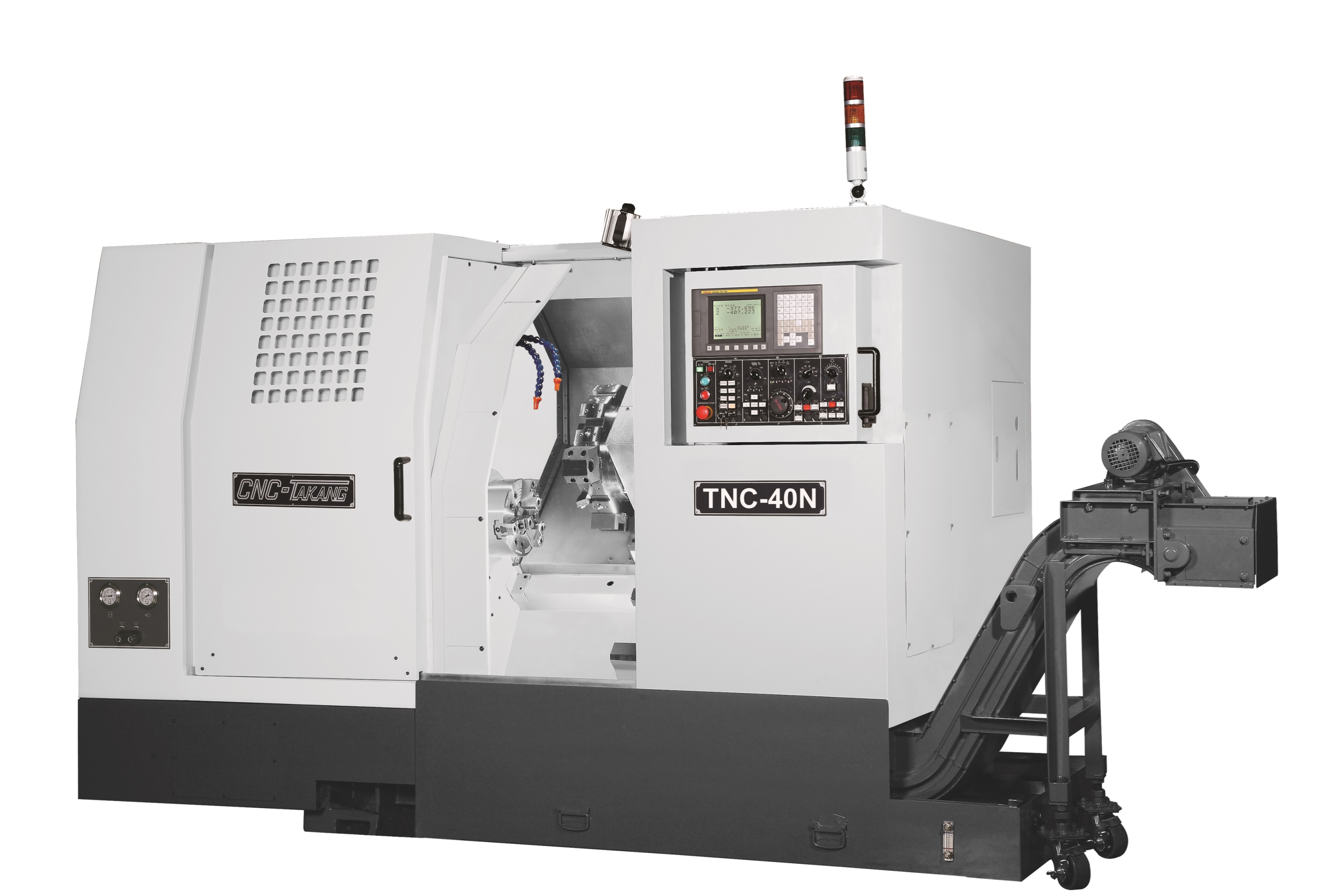

Slant Bed CNC Lathe-TNC-40NE x 650 / 1150
Slant Bed CNC Lathe
TNC-40NE x 650 / 1150
Swing: 800mm BC: 670/1150mm
- 45° slant bed, one piece cast base, high accuracy spindle, and a programmable tailstock.
- Options include Cf axis, driven turret with Y axis, auto loading/unloading, and sub spindle, covering Ø90 mm bar capacity
MENU
| Capacity | |
|---|---|
| Swing over Bed | Ø 800 mm (31.5”) |
| Swing over cross slide | Ø 590 mm (23.2”) |
| Distance between centers | 670 / 1150 mm (26.4” / 45.3”) |
| Cutting diameter | Ø 720 mm (28.3”) Direct / Ø 650 mm (25.6”) VDI |
| Hydraulic chuck | Ø 304 mm (12”) / OPT Ø 380 mm (15”) / OPT Ø 450 mm (18”) |
| Bar diameter | Ø 90 mm (3.5”) / OPT Ø 117.5 mm (4.6”) / OPT Ø 140 mm (5.5”) |
| Bed width | 480 mm (18.9”) |
| Bed slant angle | 45 degree |
| Spindle | |
| Spindle nose | A2-8 / OPT A2-11 |
| Spindle hole | Ø 102 mm (4”) / OPT Ø 130 mm (5.1”) / 160 mm (6.3”) |
| Spindle taper | 1/20 |
| Spindle speeds | 10 ~ 2500 R.P.M / OPT 10 ~ 2000 R.P.M. / 10 ~ 1650 R.P.M. |
| Spindle motor | FANUC αil 18 (18.5 / 22 kw) + 2 steps gear box (1:4) |
| Spindle dia. (OD) | Ø 160 mm (6.3”) / OPT Ø 180 mm (7”) / 220 mm (8.7”) |
| Turret | |
| Turret type | Hydraulic turret / Servo turret (OPT) |
| Tool station & size (OD) | 10 / 12 (OPT), 25 x 25 mm (1” x 1”) |
| X travel | 360 mm (14.2”) |
| Z travel | 650 / 1150 mm (25.5” / 45.2”) |
| Y travel | +- 60 mm |
| Rapid traverse | X: 18 M / MinZ: 18 M / Min |
| ID Tool holder dia. | Ø 40 mm (1.6”) |
| Tailstock | |
| Tailstock travel | 550 / 1050 mm (21.6” / 41.3”) |
| Quill diameter | Ø 160 mm (6.3”) |
| Quill travel | 100 mm (3.9”) |
| Quill taper | MT5 |
※ The specifications are subject to change without prior notice.

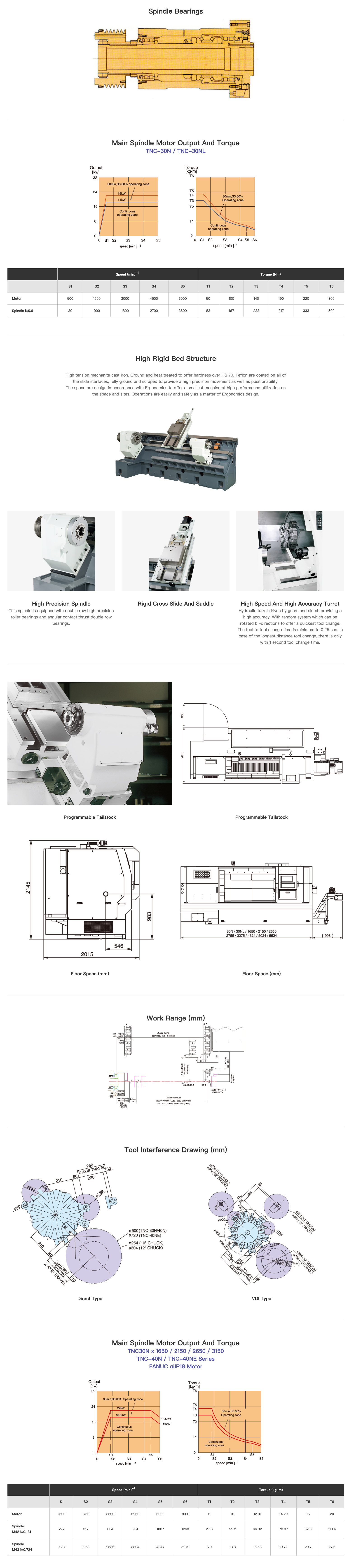

Features
1. Rigid slant bed base
45° slant bed with one piece casting; slideway width 850 mm, overall width 1165 mm—rigid foundation and excellent chip flow.
2. Spindle and machine Accuracy
Precision ground spindle bearing housing with dynamic balance test; machine accuracy better than ISO standard.
3. Programmable tailstock +rotating quill
Programmable tailstock with high rigidity rotating quill
4. Multi-axis options
Cf axis (extra servo + gearbox + ring encoder; min index 0.001°, higher torque/accuracy than Cs); BMT65/VDI40 driven turret with ±60 mm Y axis.
5. Automation and Production Line Integration
Auto loading/unloading, separated coolant tank, chain type chip conveyor, enclosed electrical cabinet; optional sub spindle; bar capacity Ø90 mm, DBC 670–1150 mm, hydraulic chucks 10″–24″; ISO/CE certified
45° slant bed with one piece casting; slideway width 850 mm, overall width 1165 mm—rigid foundation and excellent chip flow.
2. Spindle and machine Accuracy
Precision ground spindle bearing housing with dynamic balance test; machine accuracy better than ISO standard.
3. Programmable tailstock +rotating quill
Programmable tailstock with high rigidity rotating quill
4. Multi-axis options
Cf axis (extra servo + gearbox + ring encoder; min index 0.001°, higher torque/accuracy than Cs); BMT65/VDI40 driven turret with ±60 mm Y axis.
5. Automation and Production Line Integration
Auto loading/unloading, separated coolant tank, chain type chip conveyor, enclosed electrical cabinet; optional sub spindle; bar capacity Ø90 mm, DBC 670–1150 mm, hydraulic chucks 10″–24″; ISO/CE certified
